FEATURES

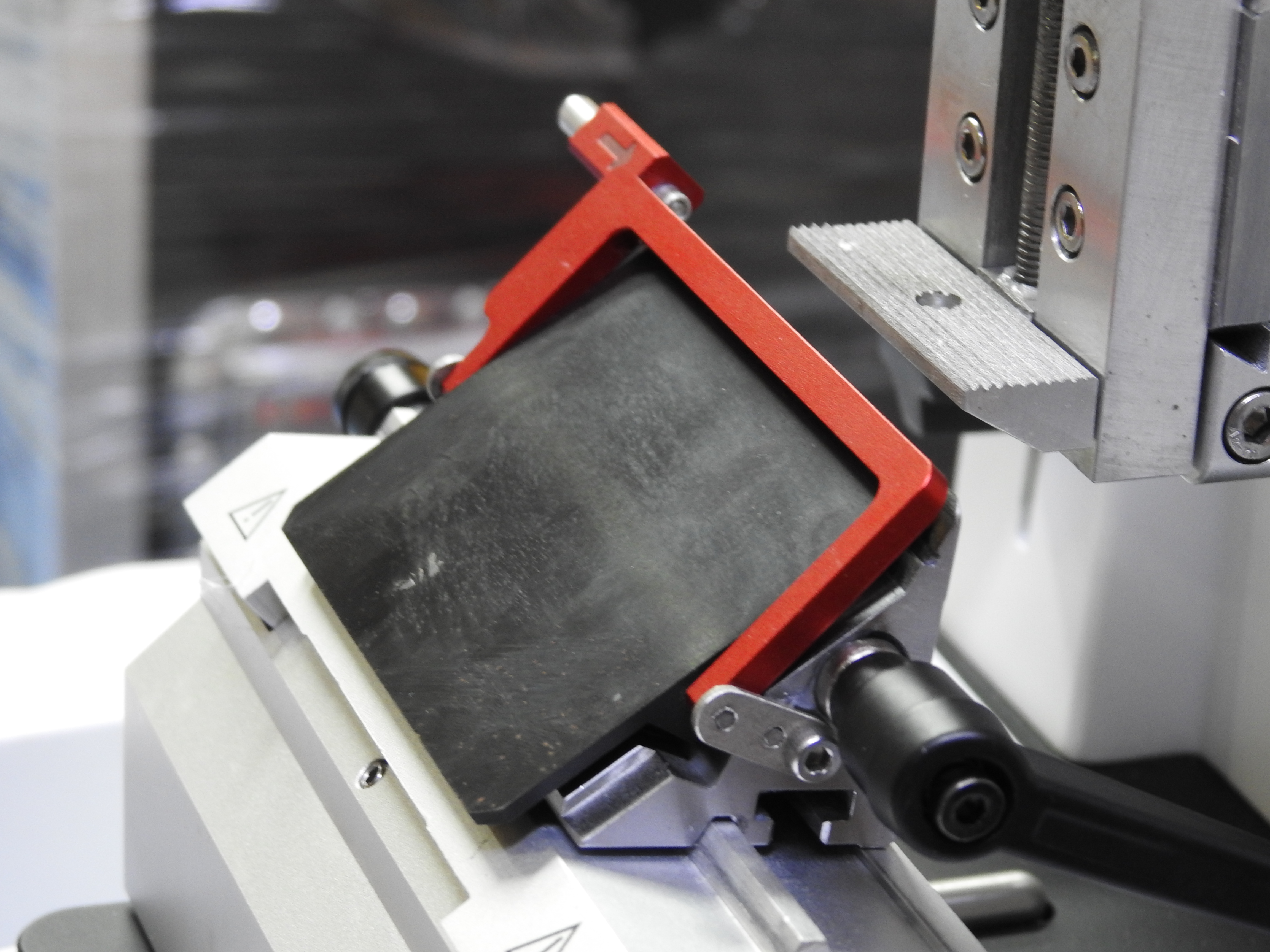

● Wide and narrow universal clamp: compatible with various blade sizes, strong versatility
● With knife retreat function,the red guard covers the entire blade and protects the user.
● Back shrink function: protect the wax block, safe and easy to use
● New cross roller guide and micron sampling: Long-lasting lubrication, no frequent maintenance,
stable and accurate operation.
TECHNICAL SPECIFICATIONS
● Section thickness indicator: Window
● Section thickness range: 0.5-60um
● Section thickness setting:·0-2um in 0.5um.2-10μm in 1um·10-20um in 2μm·20-60μm in 5um increments
● Horizontal njection: 25mm
● Vertical Stroke: 59mm
● Maximum specimen size:20×55mm
