FEATURES

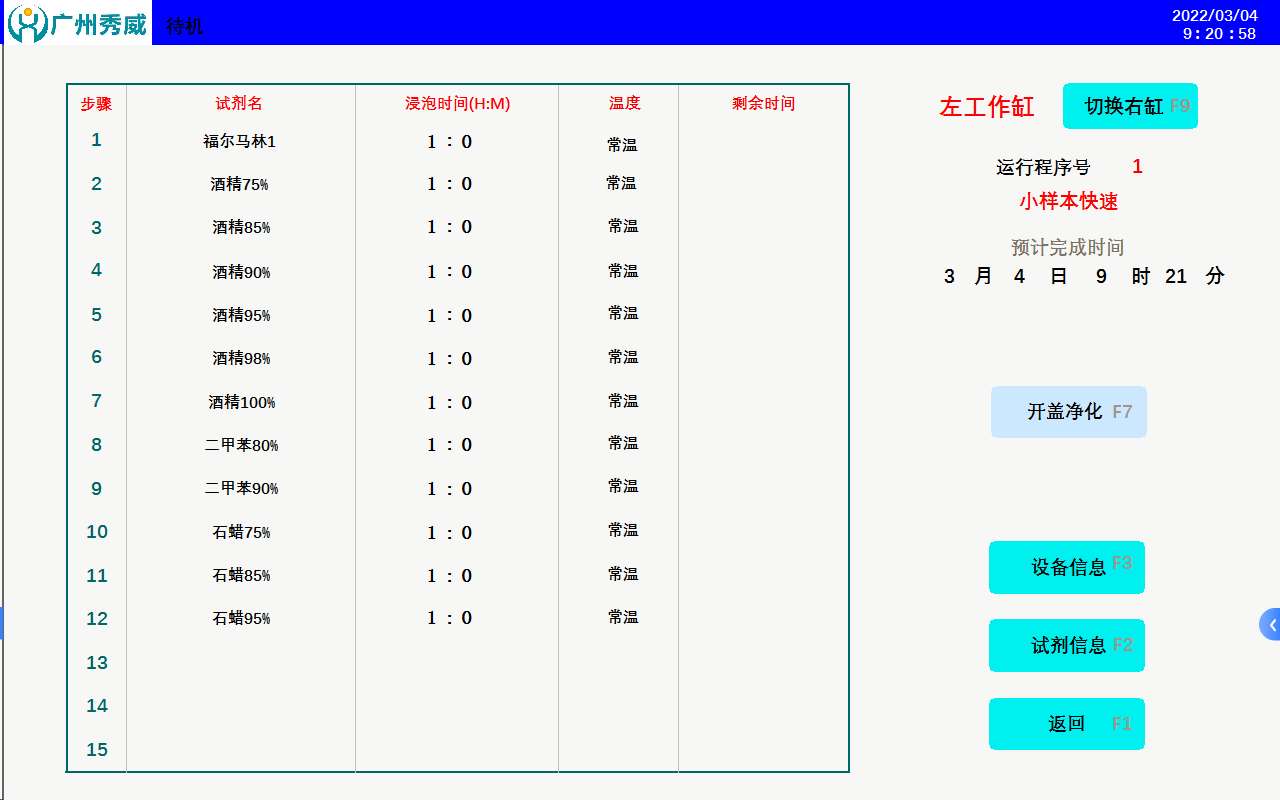

● Advanced touch display screen: a color 10-point touch display screen, detachable and adjustable to any angle,
reducing visual fatigue, with a resolution of up to 1080P.
● Cylinder cover lock and sealing: Mechanical buckle design with low failure rate and low maintenance cost. It is equipped with
a high-temperatureand corrosion-resistant sealing gasket to ensure stable airtightness inside the cylinder.

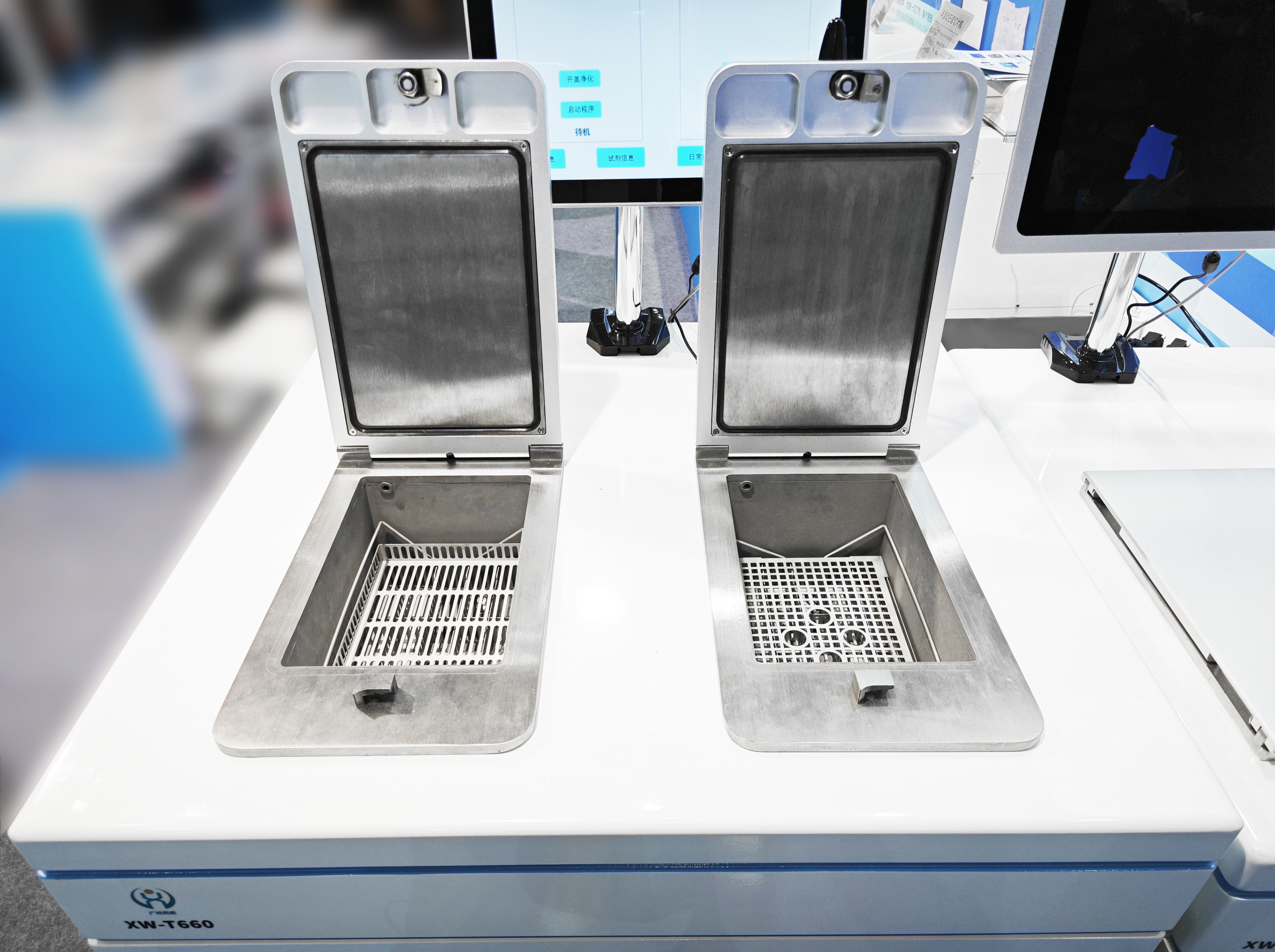

● Design of the tissue processing cylinder:
-The 15° inclined design of the bottom allows smooth liquid drainage and reduces reagent residue.
-The raised hemispherical grid design of the liquid outlet effectively filters debris and prevents blockage.
-Double-cylinder design with a single cylinder capacity of 6L, supporting the dehydration treatment of ≥600 tissues,
allowing flexible selection of single-cylinder or double-cylinder mode.

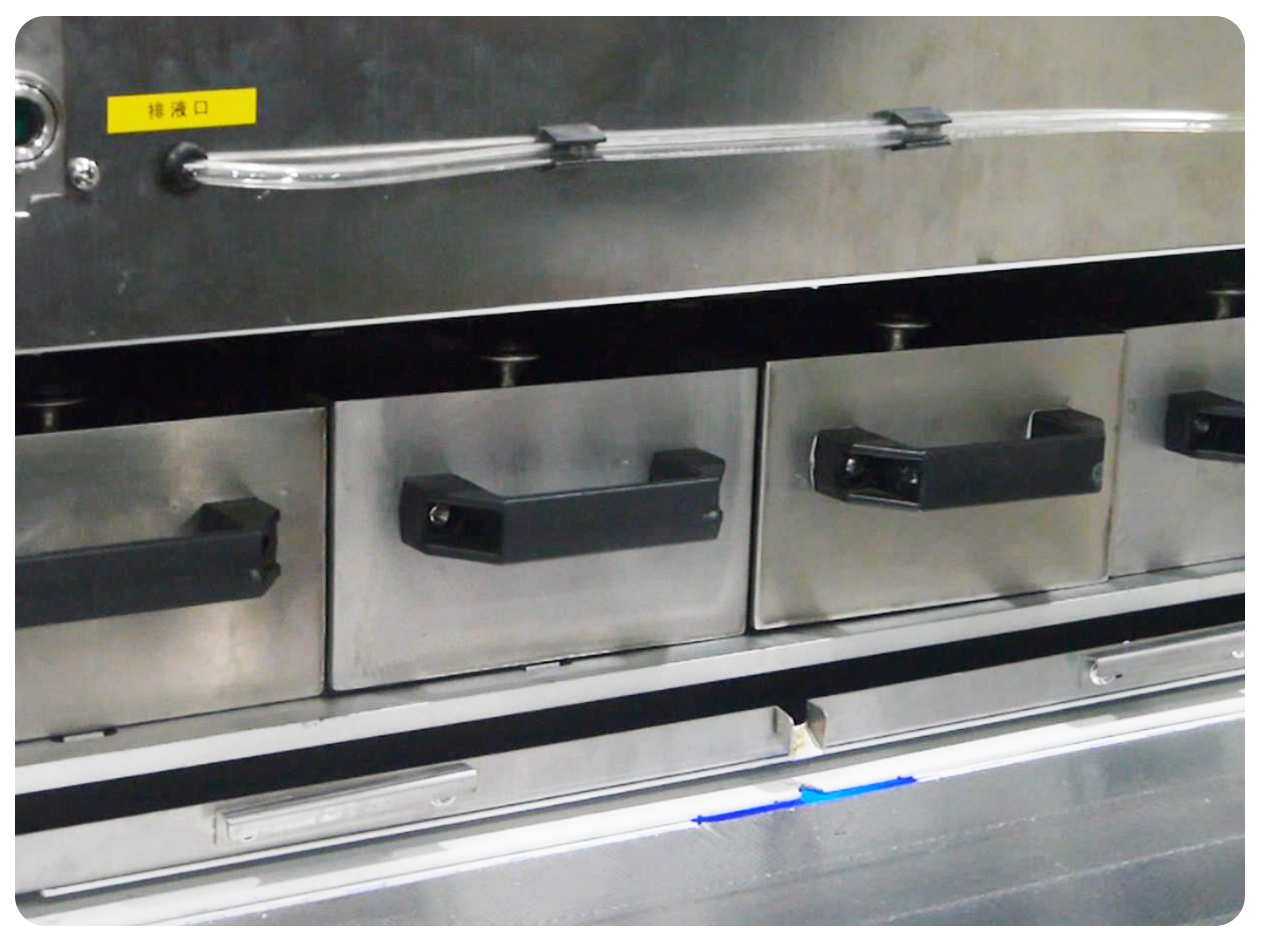

● Tissue wax cylinder: a horizontal four-cylinder design with a single cylinder capacity of 4L for paraffin.
● Reagent bottle arrangement: 2+3+11 structure, including 2 condensation bottles, 3 cleaning buckets, and 11 reagent buckets
(with the option to add 2 more).
● Gas path backup system: Ensures that the dehydration process is not interrupted when the main gas path fails,
and the backup system automatically activates.
